JD507T smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black; Unlocking method: APP, Fingerprint, Password, Key, Bluetooth, Face, WisHome App, 3D Face, fingerprint, password, key, WisHome App, fingerprint, password, key; Applicable: 35-70mm
Material & Finish
Spec Models
Applications
Product Images & Structure
Click image to view large
Product Images

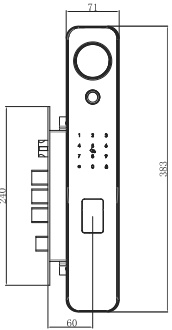

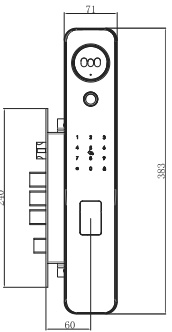

Structure Drawings
Detailed Specifications
| Parameter | Value / Description |
|---|---|
| Material | Stainless steel, Aluminum, Aluminum alloy |
| Surface treatment | Black |
| Lock body or latch material | Stainless steel 304 |
| Unlocking method | APP, Fingerprint, Password, Key, Bluetooth, Face, WisHome App, 3D Face, fingerprint, password, key, WisHome App, fingerprint, password, key |
| Applications | 35-70mm door thickness for villa, apartment, school, office and etc. |
| Suitable door thickness | 35-70mm |
| Main circuit board | Military grade microcomputer chip |
| Sensor | Bio-semiconductor fingerprint sensor |
| Standby current | <85µA, <85μA |
| Operating current | <250mA |
| Power supply | 7.4V (1pc 5, 000mAh Lithium battery) |
| Battery life | 8, 000 opening, normally 6 months, 8, 000 opening, normally 6months |
| Operating temperature | -20 to +55°C, -10 to +65°C |
| Capacity | Max 899 users (Max 100 face user) (Include online password & offline password), Max 899 users (Max 100 fingerprint) |
| Color or appearance | Black |
Product Description
JD507T smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black; Unlocking method: APP, Fingerprint, Password, Key, Bluetooth, Face, WisHome App, 3D Face, fingerprint, password, key, WisHome App, fingerprint, password, key; Applicable: 35-70mm
- APP
- Fingerprint
- Password
- Key
- Bluetooth
- Face

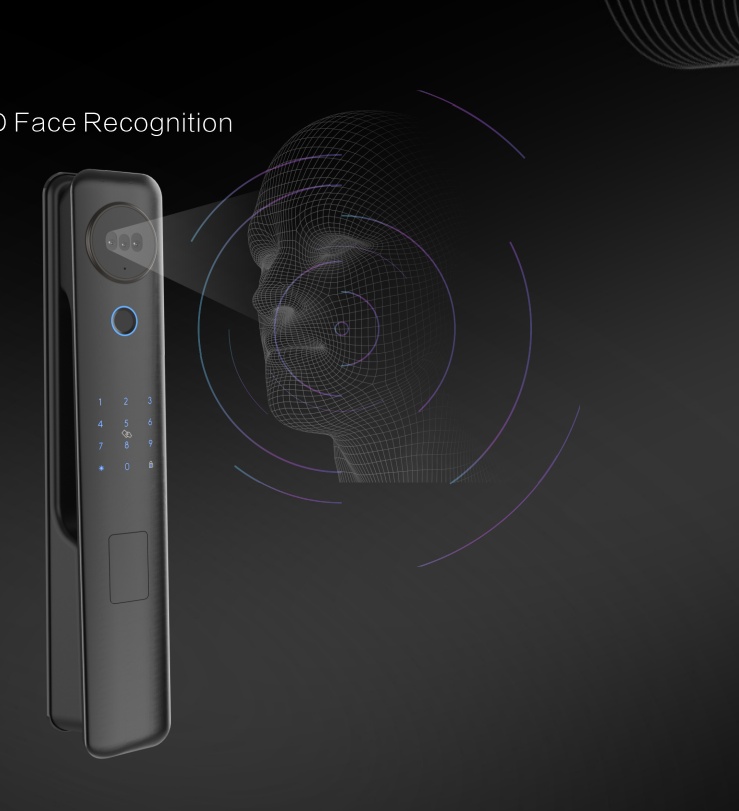

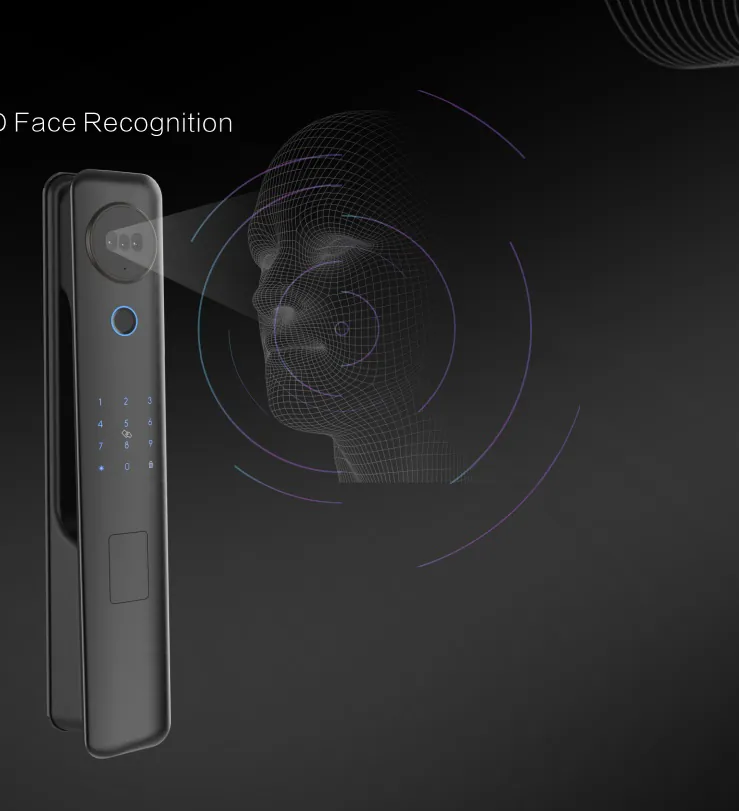

- 3DFace recognition
- Fingerprint
- PIN code
- Mechanical key
JD507T: where face recognition pays off on a residential door
The JD507T is a residential and apartment lock for doors 35–70 mm thick. It reads a 3D face plus fingerprint, password, card, Bluetooth and a mechanical key, which matters when the people using the door have their hands full — deliveries, cleaning staff, elderly residents, or short-stay guests who should not be issued a physical key. Stainless steel, aluminium and aluminium alloy housings are available in black; the model is chosen against the door leaf and the hardware already fitted. Typical applications are apartments, villas, home offices and small schools. For project work we supply the dimension drawing, drilling template and the credential list per door, so the joiner can prepare the leaf before the locks arrive and the whole floor can be commissioned in one pass.
