JD507T 家用·公寓智能门锁；材质：Stainless steel, Aluminum, Aluminum alloy；外观：Black；开锁方式：APP, Fingerprint, Password, Key, Bluetooth, Face, WisHome App, 3D Face, fingerprint, password, key, WisHome App, fingerprint, password, key；适用：35-70mm
APPFingerprintPasswordKeyBluetoothFace3D人脸指纹密码机械钥匙
材质与外观
Stainless steel Aluminum Aluminum alloy Black
个规格型号
JD507T
应用场景
学校办公室公寓别墅家用
产品图片与结构图
点击图片查看大图

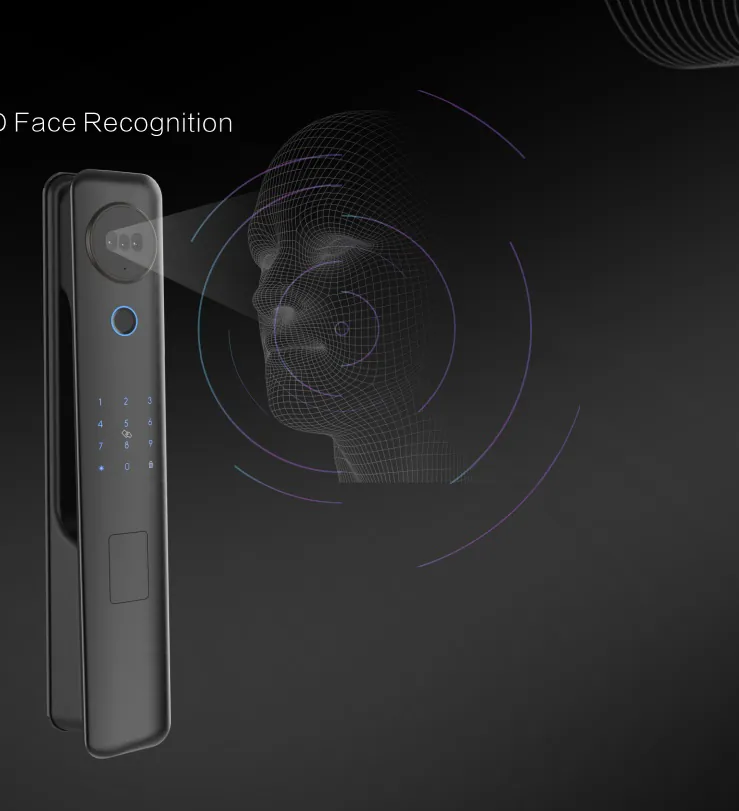

产品图片
结构图
详细参数表
核心参数完整
| 参数名 | 规格 / 说明 |
|---|---|
| 材质 | Stainless steel、Aluminum、Aluminum alloy |
| 表面处理 | Black |
| 锁体或锁舌材质 | Stainless steel 304 |
| 开锁方式 | APP、Fingerprint、Password、Key、Bluetooth、Face、WisHome App、 3D Face、 fingerprint、 password、 key、WisHome App、 fingerprint、 password、 key |
| 适用范围 | 35-70mm door thickness for villa、 apartment、 school、 office and etc. |
| 适用门厚 | 35-70mm |
| 主电路板 | Military grade microcomputer chip |
| 传感器 | Bio-semiconductor fingerprint sensor |
| 待机电流 | <85µA、<85μA |
| 工作电流 | <250mA |
| 供电方式 | 7.4V (1pc 5、000mAh Lithium battery) |
| 电池寿命 | 8、000 opening、 normally 6 months、8、000 opening、 normally 6months |
| 工作温度 | -20 to +55°C、-10 to +65°C |
| 容量 | Max 899 users (Max 100 face user) (Include online password & offline password)、Max 899 users (Max 100 fingerprint) |
| 颜色或外观 | Black |
产品说明
JD507T 家用·公寓智能门锁；材质：Stainless steel, Aluminum, Aluminum alloy；外观：Black；开锁方式：APP, Fingerprint, Password, Key, Bluetooth, Face, WisHome App, 3D Face, fingerprint, password, key, WisHome App, fingerprint, password, key；适用：35-70mm
- APP
- Fingerprint
- Password
- Key
- Bluetooth
- Face
- 3D人脸
- 指纹
- 密码
- 机械钥匙
