JD204A smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black, Silver, Anodized aluminum (Black / Silver); Unlocking method: APP, Fingerprint, Password, Card, Key, WisHome App, Password, card, key; Applicable: 35-70mm
APPFingerprintPasswordCardKey指纹密码刷卡机械钥匙蓝牙
Material & Finish
Stainless steel Aluminum Aluminum alloy Black Silver
Spec Models
JD204A
Applications
学校办公室公寓别墅家用

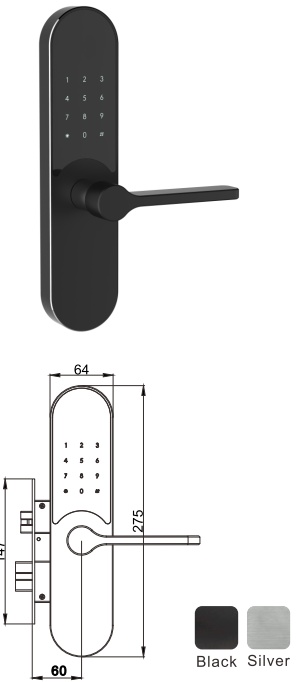

Product Images & Structure
Click image to view large
Product Images
Detailed Specifications
核心参数完整
| Parameter | Value / Description |
|---|---|
| 材质 | Stainless steel, Aluminum, Aluminum alloy |
| 表面处理 | Black, Silver, Anodized aluminum (Black / Silver) |
| 锁体或锁舌材质 | Stainless steel 304 |
| 开锁方式 | APP, Fingerprint, Password, Card, Key, WisHome App, Password, card, key |
| 适用范围 | 35-70mm door thickness for villa, apartment, school, office and etc. |
| 适用门厚 | 35-70mm |
| 主电路板 | Military grade microcomputer chip |
| 传感器 | Bio-semiconductor fingerprint sensor |
| 待机电流 | <85μA |
| 工作电流 | <250mA |
| 供电方式 | 6V (4pcs AA alkaline battery) |
| 电池寿命 | 10, 000 opening, normally 1 year |
| 工作温度 | -10 to +65°C |
| 低电报警 | at 4.8V |
| 容量 | Max 899 users (password+card+2keys) |
| 颜色或外观 | Black, Silver |
Product Description
JD204A smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black, Silver, Anodized aluminum (Black / Silver); Unlocking method: APP, Fingerprint, Password, Card, Key, WisHome App, Password, card, key; Applicable: 35-70mm
- APP
- Fingerprint
- Password
- Card
- Key
- 指纹
- 密码
- 刷卡
- 机械钥匙
- 蓝牙
