LS-C87 smart door lock for home and apartment; unlocking methods: APP, Fingerprint, Password, Card, Key, Bluetooth, time, Ways
APPFingerprintPasswordCardKeyBluetoothFingerprintPIN codeCard swipeMechanical key
Spec Models
LS-C87
Applications
Residential

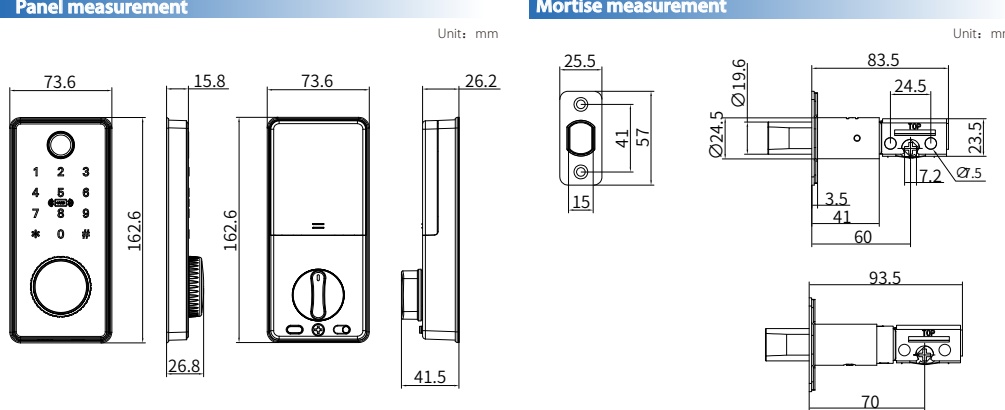

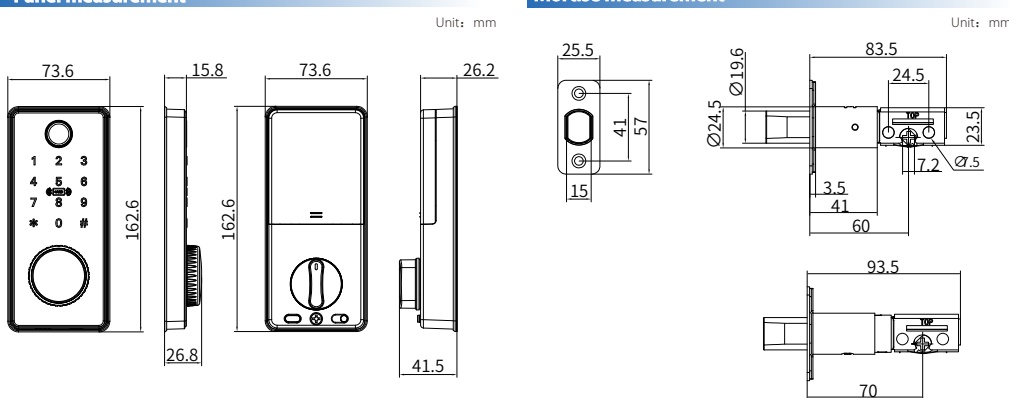

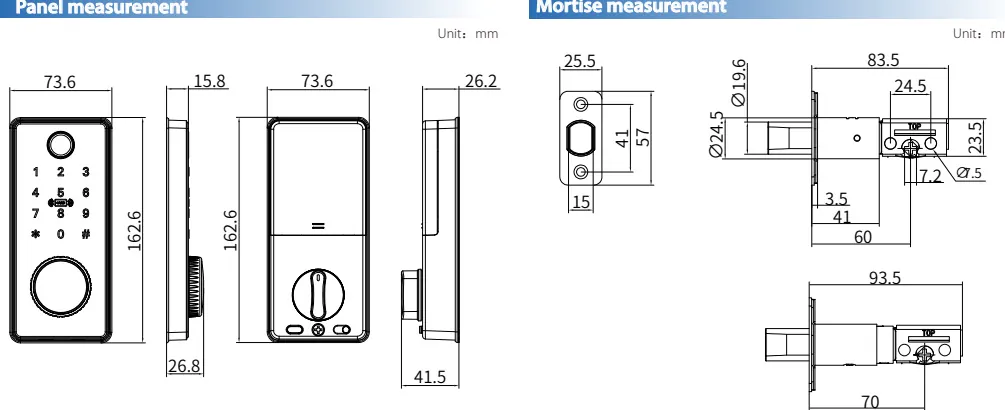

Product Images & Structure
Click image to view large
Product Images
Detailed Specifications
Complete specification table
| Parameter | Value / Description |
|---|---|
| Lock body or latch material | measurement |
| Unlocking method | APP, Fingerprint, Password, Card, Key, Bluetooth, time, Ways |
| Standby current | 65 microamps |
| Power supply | mode |
| Operating temperature | -20 ~ 70°C |
| Low battery alarm | 4.8V |
Parameter or specification information
| Parameter | Value / Description |
|---|---|
| Bluetooth standard | Bluetooth 4.1ble |
| Supported mobile phone | Android 4.3 / IOS 7.0 or above |
| Power supply mode | 4 alkaline dry batteries |
| Low voltage alarm | 4.8V |
| Voltage range | 4.5~6V |
Table information
| Parameter | Value / Description |
|---|---|
| Key type | Capacitive touch button |
| IC cards Capacity | Mifare M1 card 200 |
| Unlocking Ways | Fingerprint head type |
| Semiconductor fingerprint head | Fingerprint capacity |
Product Description
LS-C87 smart door lock for home and apartment; unlocking methods: APP, Fingerprint, Password, Card, Key, Bluetooth, time, Ways
- APP
- Fingerprint
- Password
- Card
- Key
- Bluetooth
- Fingerprint
- PIN code
- Card swipe
- Mechanical key
