JD508T smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black, Anodized aluminum (Black); Unlocking method: APP, Fingerprint, Password, Key, Face, WisHome App, 3D Face, fingerprint, password, key; Applicable: 35-70mm
APPFingerprintPasswordKeyFace3DFace recognitionFingerprintPIN codeMechanical keyBluetooth
Material & Finish
Stainless steel Aluminum Aluminum alloy Black
Spec Models
JD508T
Applications
SchoolsOfficesApartmentsVillasResidential

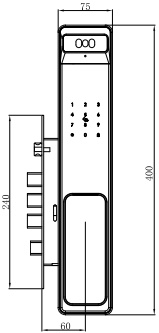

Product Images & Structure
Click image to view large
Product Images
Detailed Specifications
Complete specification table
| Parameter | Value / Description |
|---|---|
| Material | Stainless steel, Aluminum, Aluminum alloy |
| Surface treatment | Black, Anodized aluminum(Black) |
| Lock body or latch material | Stainless steel 304 |
| Unlocking method | APP, Fingerprint, Password, Key, Face, WisHome App, 3D Face, fingerprint, password, key |
| Applications | 35-70mm door thickness for villa, apartment, school, office and etc. |
| Suitable door thickness | 35-70mm |
| Main circuit board | Military grade microcomputer chip |
| Sensor | Bio-semiconductor fingerprint sensor |
| Standby current | <85μA |
| Operating current | <250mA |
| Power supply | 7.4V (1pc 5, 000mAh Lithium battery) |
| Battery life | 8, 000 opening, normally 6 months |
| Operating temperature | -20 to +55°C |
| Capacity | Max 899 users (Max 100 face user) (Include online password & offline password) |
| Color or appearance | Black |
Parameter or specification information
| Parameter | Value / Description |
|---|---|
| Face | Collected time < 1s |
| FAR | <0.001% |
| LPFRR | <1% |
| Capacity | Operating temperature |
Product Description
JD508T smart door lock for home and apartment; Material: Stainless steel, Aluminum, Aluminum alloy; Appearance: Black, Anodized aluminum (Black); Unlocking method: APP, Fingerprint, Password, Key, Face, WisHome App, 3D Face, fingerprint, password, key; Applicable: 35-70mm
- APP
- Fingerprint
- Password
- Key
- Face
- 3DFace recognition
- Fingerprint
- PIN code
- Mechanical key
- Bluetooth
