JD322T smart door lock for home and apartment; Material: Stainless steel, No.45 steel with powder spray finish; Appearance: Black; Unlocking method: APP, Fingerprint, Password, Key, WisHome App, fingerprint, password, key; Applicable: 35-70mm
APPFingerprintPasswordKeyFingerprintPIN codeMechanical keyBluetoothReversible door handingPMSPMS integration
Material & Finish
Stainless steel No.45 steel with powder spray finish Black
Spec Models
JD322T
Applications
SchoolsOfficesApartmentsVillasResidential
Product Images & Structure
Click image to view large

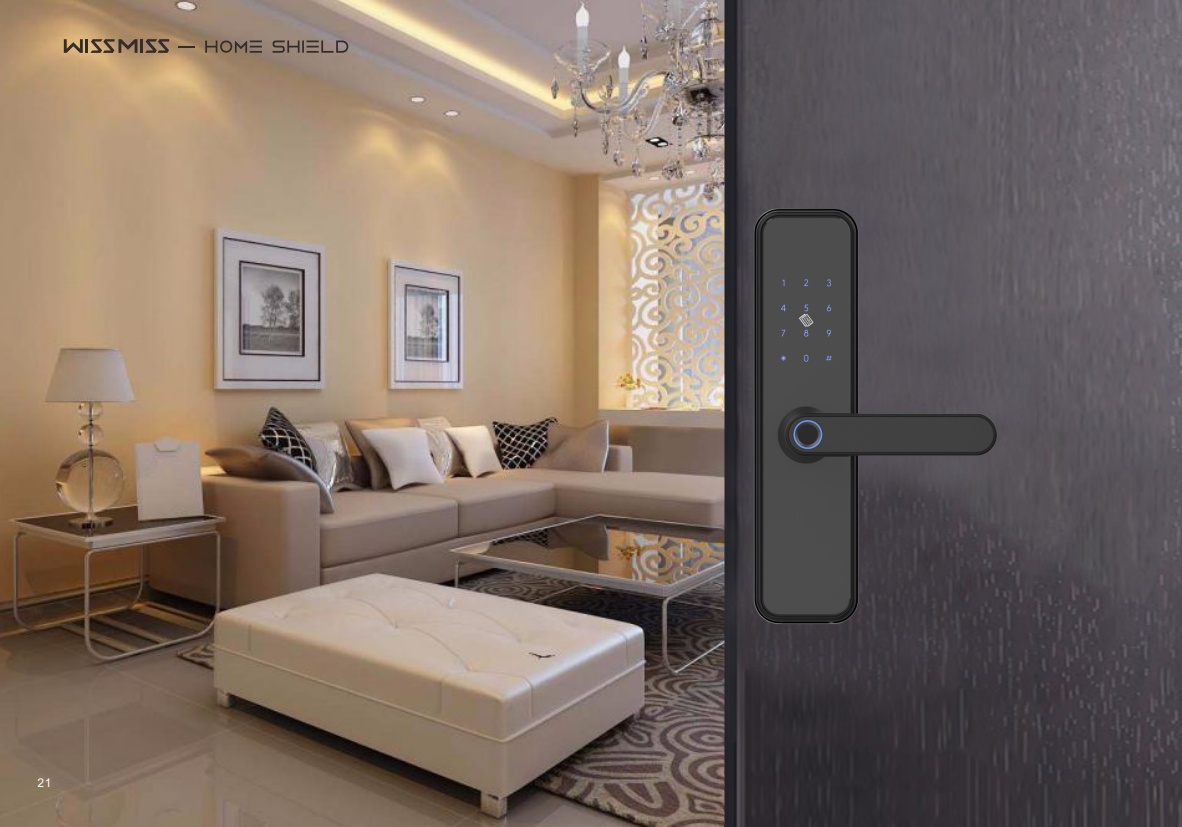

Product Images

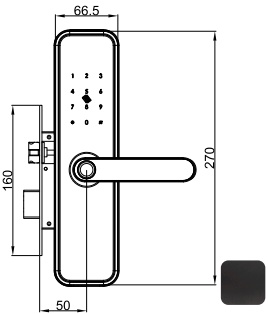

Structure Drawings
Detailed Specifications
Core parameters complete
| Parameter | Value / Description |
|---|---|
| Material | Stainless steel, No.45 steel with powder spray finish |
| Surface treatment | Black |
| Lock body or latch material | Stainless steel 304 |
| Unlocking method | APP, Fingerprint, Password, Key, WisHome App, fingerprint, password, key |
| Applications | 35-70mm door thickness for villa, apartment, school, office and etc. |
| Suitable door thickness | 35-70mm |
| Main circuit board | Military grade microcomputer chip |
| Sensor | Bio-semiconductor fingerprint sensor |
| Standby current | <85μA |
| Operating current | <250mA |
| Power supply | 6V (4pcs AA alkaline battery) |
| Battery life | 10, 000 opening, normally 1 year |
| Operating temperature | -10 to +65°C |
| Capacity | Max 899 users (Max 100 fingerprint) |
| Color or appearance | Black |
Product Description
JD322T smart door lock for home and apartment; Material: Stainless steel, No.45 steel with powder spray finish; Appearance: Black; Unlocking method: APP, Fingerprint, Password, Key, WisHome App, fingerprint, password, key; Applicable: 35-70mm
- APP
- Fingerprint
- Password
- Key
- Fingerprint
- PIN code
- Mechanical key
- Bluetooth
- Reversible door handing
- PMSPMS integration
