JD149 hotel smart door lock; material: Zinc alloy, Stainless steel; appearance: Black, Grey, Black/Grey; unlocking method: APP, Card, Key; applicable: 38-50mm
APPCardKeyCard swipeMechanical keyBluetoothDoor-left-open alarmLow battery alarmPMSPMS integration
Material & Finish
Zinc alloy Stainless steel Black Grey
Spec Models
JD149
Applications
HotelsSchoolsOffices
Product Images & Structure
Click image to view large

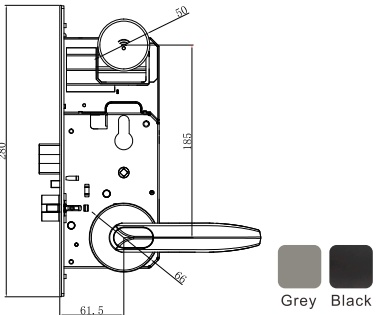

Structure Drawings
Detailed Specifications
Core parameters complete
| Parameter | Value / Description |
|---|---|
| Material | Zinc alloy, Stainless steel |
| Surface treatment | Black, Grey, Black/Grey |
| Lock body or latch material | Zinc alloy/Die-cast stainless steel 304 |
| Card type | Mifare card |
| Opening records | 900 events |
| Unlocking method | APP, Card, Key |
| Applications | 38-50mm door thickness for hotel, school, office and etc. |
| Suitable door thickness | 38-50mm |
| Standby current | <18μA |
| Operating current | <250mA |
| Power supply | 4 AA alkaline battery |
| Battery life | 10, 000 opening, normally 1 year |
| Operating temperature | -10 to +65 ℃ |
| Operating humidity | < 80% RH |
| Low battery alarm | at 4.8V |
| Color or appearance | Black, Grey |
Product Description
JD149 hotel smart door lock; material: Zinc alloy, Stainless steel; appearance: Black, Grey, Black/Grey; unlocking method: APP, Card, Key; applicable: 38-50mm
- APP
- Card
- Key
- Card swipe
- Mechanical key
- Bluetooth
- Door-left-open alarm
- Low battery alarm
- PMSPMS integration
