JD118 hotel smart door lock; material: Zinc alloy, Stainless steel; appearance: Black, Gold, Black/Rose gold; unlocking method: APP, Card, Key; applicable: 38-50mm
APPCardKey刷卡机械钥匙蓝牙门未关报警可换开门方向低电报警PMS对接
Material & Finish
Zinc alloy Stainless steel Black Gold
Spec Models
JD118
Applications
酒店学校办公室
Product Images & Structure
Click image to view large

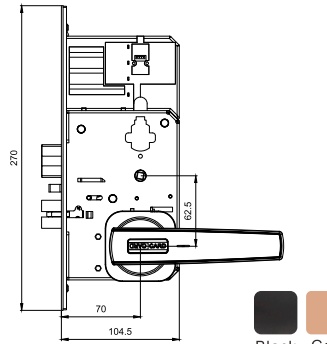

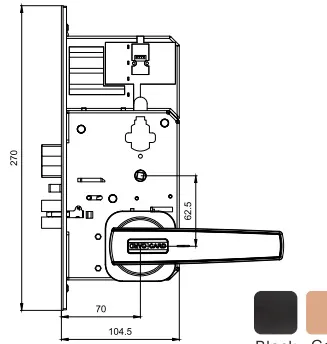

Structure Drawings
Detailed Specifications
核心参数完整
| Parameter | Value / Description |
|---|---|
| 材质 | Zinc alloy, Stainless steel |
| 表面处理 | Black, Gold, Black/Rose gold |
| 锁体或锁舌材质 | Die-cast stainless steel 304 |
| 卡类型 | Mifare card |
| 开门记录 | 900 events |
| 开锁方式 | APP, Card, Key |
| 适用范围 | 38-50mm door thickness for hotel, school, office and etc. |
| 适用门厚 | 38-50mm |
| 待机电流 | <18μA |
| 工作电流 | <250mA |
| 供电方式 | 4 AA alkaline battery |
| 工作湿度 | < 80% RH |
| 低电报警 | at 4.8V |
| 颜色或外观 | Black, Gold |
Product Description
JD118 hotel smart door lock; material: Zinc alloy, Stainless steel; appearance: Black, Gold, Black/Rose gold; unlocking method: APP, Card, Key; applicable: 38-50mm
- APP
- Card
- Key
- 刷卡
- 机械钥匙
- 蓝牙
- 门未关报警
- 可换开门方向
- 低电报警
- PMS对接
